PRODUCT FEATURES

  • 4″ frame depth
  • NFRC Certified
  • Large Missile Impact
  • Maximum Width: (X) 39 3/4″, (XX) 76″, (OXXO) 148″
  • Maximum Height: 98″
  • Heavy Gauge Aluminum T6 Alloy Profile
  • Available with Multi-Point Stainless Steel Lock
  • Standard and Custom Muntin Patterns Available
  • Prepared for Standard Hardware
  • Laminated Impact Resistant Glass

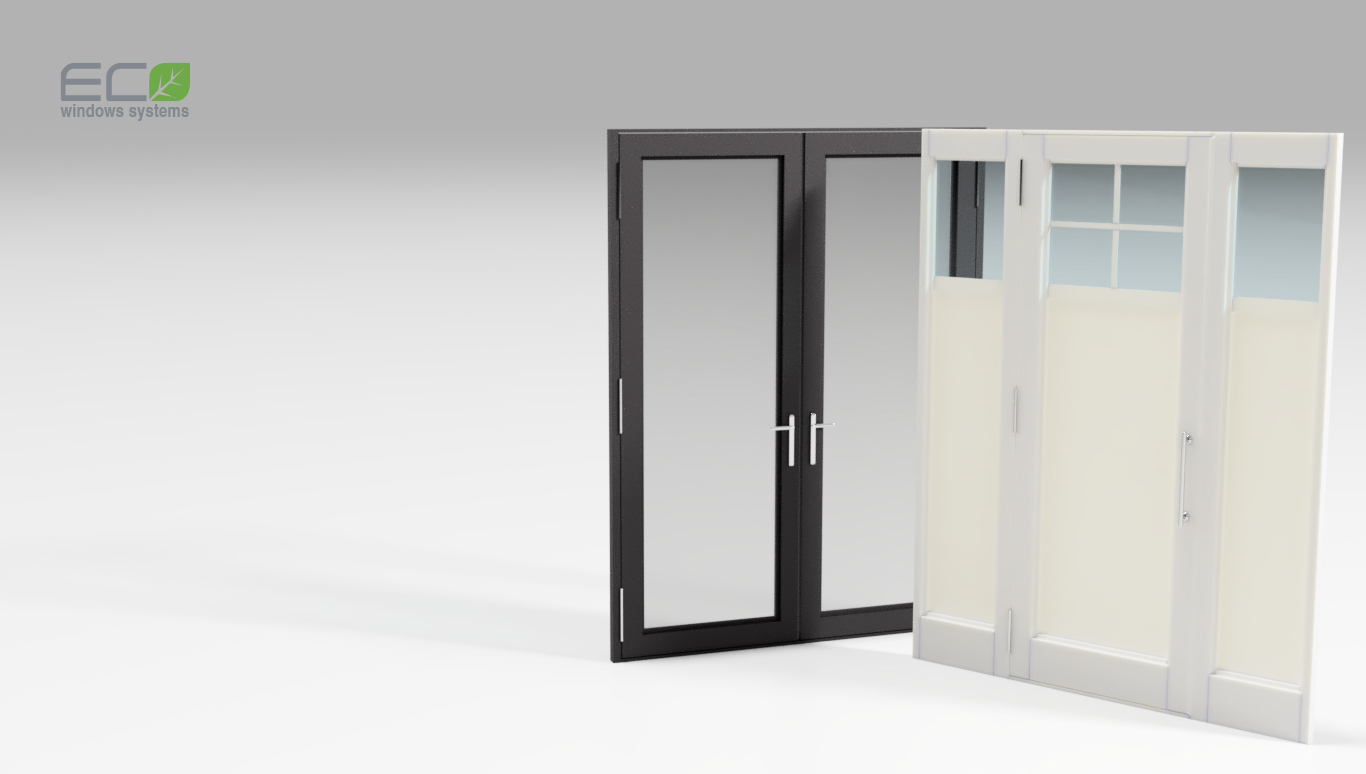

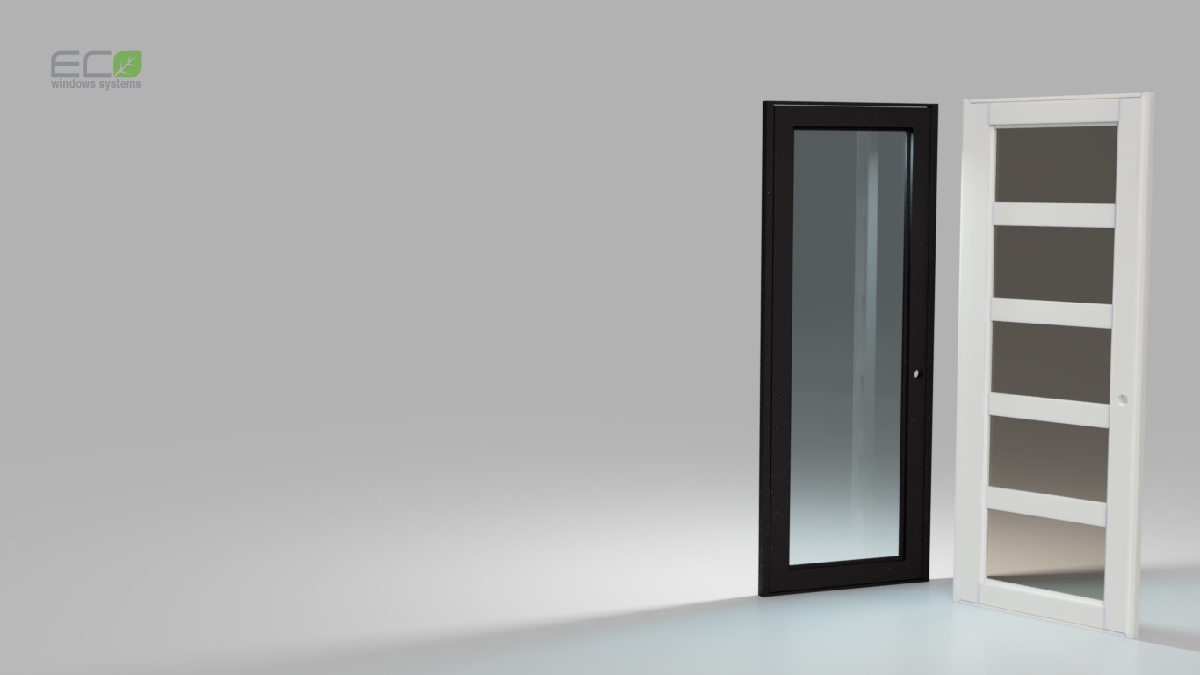

  • Available as Single or Double Door

Standard Hardware

  • Concealed Installation Screws
  • Available with 3 point, multi-point Lock
  • Pre-Hung Door Ready to Install
  • Extruded Aluminum Snap-On Glazing Beads
  • Double Weather Stripping
  • 5/16″ Heat Strengthened Glass

Optional

  • Aluminum Front Applied 2 1/2″. 4 1/4″ with 1″ Rear Colonial Muntin
  • Aluminum Double Applied 1″ Colonial Muntin
  • High bottom rail (8 1/4″)
  • 7/16″ Heat Strengthened Glass
  • Sidelites
  • Energy Efficient LoE coatings
  • Insulated Laminated Glass

PRODUCT FEATURES

  • 4″ Frame Depth
  • Large Missile Impact
  • Maximum Width: (X) 39 1/2″, (XX) 76 1/4″
  • Maximum Height: 97 1/2″
  • Prepared for Standard Hardware
  • Laminated Impact Resistant Glass
  • Available as Single or Double Door
  • Heavy Gauge Aluminum T6 Alloy Profile
  • Standard and Custom Muntin Patterns Available
  • Available with Multi-Point Stainless Steel Locking

Standard Hardware

  • Concealed Installation Screws
  • Available with 3 point, multi-point lock
  • Double Weather Stripping
  • Pre-Hung Door Ready to Install
  • Extruded Aluminum Snap-On Glazing Beads

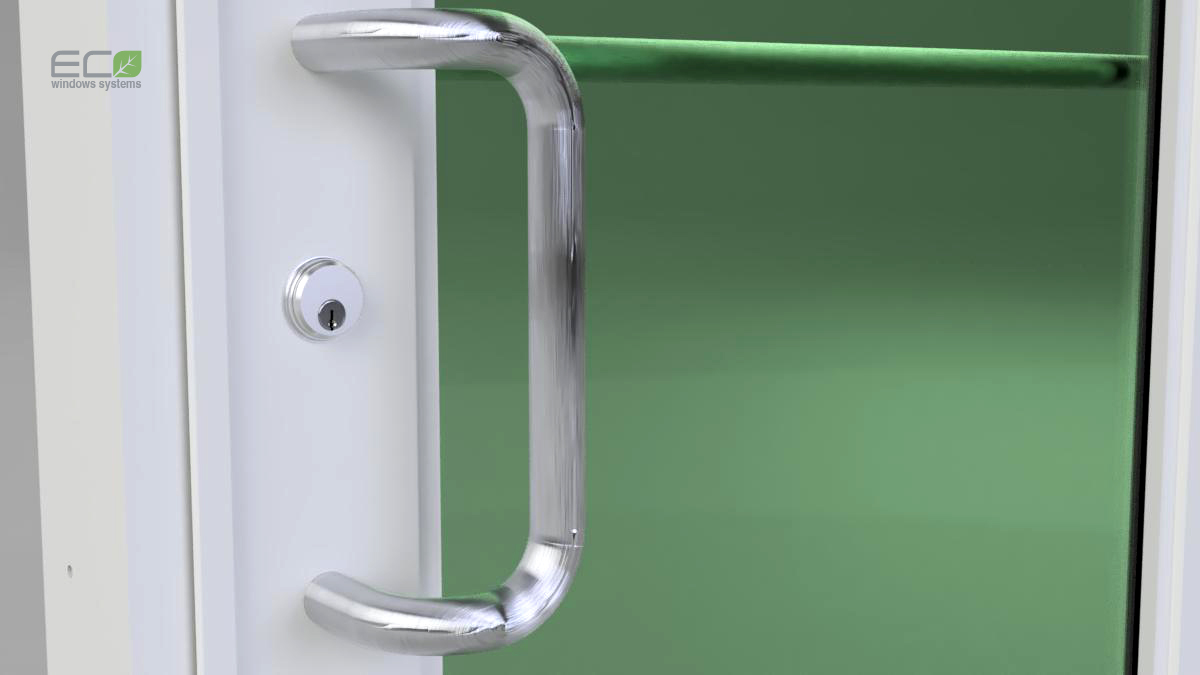

  • Std. Push – Pull +3P – Lock + Closer
  • 1/2″ ADA Threshold

Optional

  • Aluminum Double Applied 1″ Colonial Muntin
  • Sidelites
  • Energy Efficient LoE Coatings
  • Panic Device (Manual/Electric) or Push/Pull
  • Insulated Laminated Glass

PRODUCT FEATURES

  • Large Missile and Small Missile Impact
  • Heavy Gauge Aluminum T6 Alloy Profile
  • Available in Standard and Custom Sizes
  • Designed for Installation in Masonry and Wood
  • Laminated Impact Resistant Glass
  • Standard and Custom Muntin Available

Standard Hardware

  • Commercial (ADA) Threshold
  • Extruded Snap-On Glazing Beads
  • 3P-Lock + C Handle + Panic Device or Push Bar
  • Heat Strengthened Glass 9/16″ with Trosifol PVB by Kuraray

Optional

  • Large Selection of Colonial Configuration
  • Front 2 1/2″, 4 1/4″ with 1″ Rear Colonial Muntin
  • Fisical Division (Not Colonial) for More Endurance and Safety
  • Low E 70 Glass Sheet for Sun Protection
  • Heat Strengthened Glass 1 1/4″ with Trosifol PVB by Kuraray

PRODUCT FEATURES

  • 5″ Frame depth
  • Maximum Width: (X) 45 9/16″, (XX) 87 1/2″
  • Maximum Height: 120″, or with transom 132″
  • Florida Product Approval
  • Laminated Impact Resistant Glass
  • Standard and Custom Muntin Available
  • Heavy Gauge Aluminum T6 Alloy Profile
  • Available in Standard and Custom Sizes

Standard Hardware

  • 3P-Lock active leaf/ 2 point lock inactive leaf
  • 1 5/8″ Residential Bumper  Threshold
  • Extruded Snap-On Glazing Beads
  • Heat Strengthened Glass 9/16″

Optional

  • Energy Efficient LoE Coatings
  • Insulated Laminated Glass
  • Large Selection of Colonial Configuration
  • Integral Transom
  • 10″ Bottom Rail
  • Sidelites
  • Intermediate Division for Endurance and Safety
